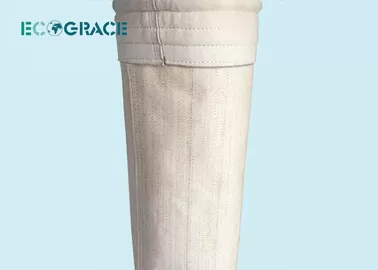

PTFE Fiberglass Filter Bags Cement Plant Reverse Air Blow 292mm x 11 Meter
ECOGRACE Fiberglass Filter Bags:
Among the various of kins of filter materials, fiberglass owns the best ability of heat-resistance, its maximum surge temperature can reach up to 260 degree and can hold a 260 degree operation temperature. Therefore, it is suitable for the high temperature gas filtration.
Detailed Product Description :
Fiber:
Fiberglass
Weight:
775g/m2
Thickness:
0.8±0.1mm
Mechanical Finish:
ePTFE Member
Typical Load@ Peak:
MD: 220, XD: 120 KGF/25mm
Liner Shrinkage @ 230 Degree:
MD: 1%, XD: 1%
Maximum Operation Tempertion:
260 Degree
Maximum Surge Temperature:
280 Degree
Abrasion Resistance:
Excellent
Features:
1, Fiber: Fiberglass
2, Mechanical Finish: ePTFE member
3, Continous Operation Temperature: 260 degree
4, Maximum Surge Temperature: 280 degree
5, Mechanical Finish: ePTFE member
6, Application: Incerineration Flue Filtration
Performance:
1, Excellent heat resistance.
2, Strong ability of resisting acids and alkails.
3, Poor hydrolysis resistance.
4, Good flame retardant, insulation, heat insulation, light stability, low coefficient of friction.
Technical Information of Fiberglass filter bag
Article Name
Fiberglass cloth
Ingredients
Fiber
fiberglass
Scrim
fiberglass
Weight
g/m2
775
Thickness
mm
0.9
Density
g/m³
0.24
Permeability
L/dm2.min
150
Tensile breaking
strength(N/5cm)
Warp
≥2700
Weft
≥3200
Elongation @210N/5cm
Warp
<6
Weft
<8
Maximum shrink
of 90 mins
Temperature(°C)
280
%
≤1
Service Temperature(°C)
Continuous
260
Instant
280
Finishing
ePTFE member

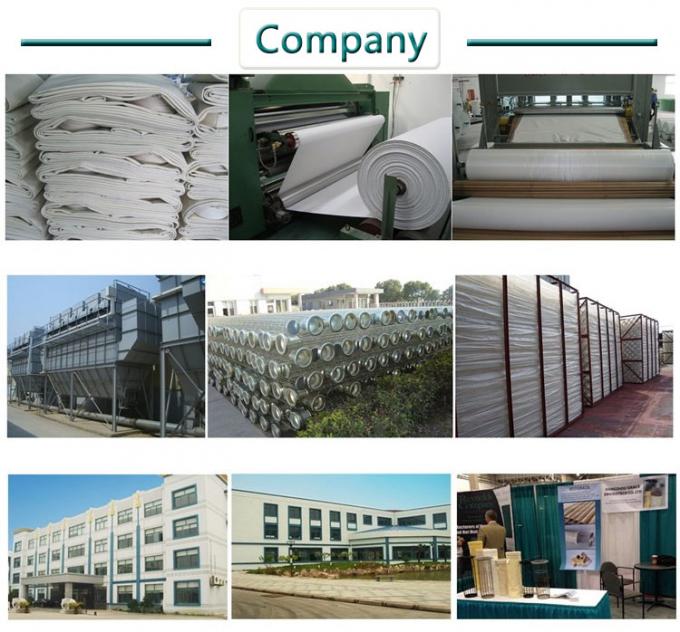

Brief Introduction of ECOGRACE
We are a manufactory,We have a team of technical engineers, who have more than ten years experience in the filter bags and dust collector system . ECOGRACE filter bagS enjoy a good reputation in and out of our country for the professional service and compentitive price. To develop a lonng-term business relationship with customers, we pay quite lot of attention to the service. To provide the best service as we could, we also provide “DIY” service, which means we will design a dust collector according to customer’s working condition. What’s more, we still have oversea service available.
