Woodworking 3 Micron Dust Collector Bag Filter For Induction Furnace Steel Mill

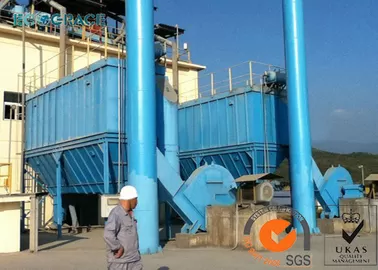

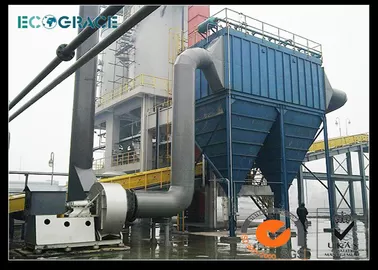

Induction furnace dust collector 1. High efficiency and low cost 2. Compact design collector 3. Long using life
industrial dust filter, GRACE FILTER, dust extractor, baghouses (also called pulse jet baghouse, pulsejet dust collectors, etc…) is self contained, fully automated where needed. We also supply and install ducting, access platforms, ventilation and instrumentation. Bughouses are engineered for dusts of 3 microns and larger, in the following applications:
We offer a full range of collector designs and media choices to solve the toughest pollution control problems involving high temperatures, pressures and corrosives.Rugged construction is standard.
All-welded fabrication for operation to ±20″ WG (rectangular models); 11 gauge, 12 vertical wire cages are standard. Top and side bag models are available.
For demanding high pressure/high vacuum applications, we offer two styles of cylindrical dust collectors: top and side dust collector bag designs. Each features all welded construction for up to 14.7 spin. Explosion containment or ASME code designs are available.
All are available with a wide variety of special features:
special bag diameters
special nozzles and fittings
alloy construction
custom hopper configurations
special support structures
custom inlets
broken bag detectors, temperature sensors
internal polishing
custom outlet ducts and stacks
special paints (zinc chromate, epoxies, colour matching)
explosion protection
Model
PPC32-3
PPC32-4
32-5
32-6
64-4
64-5
64-6
64-7
64-8
Air volume (m3 /h)
6900
8930
11160
13390
17800
22300
26700
31200
35700
Total filter area (m2)
93
124
155
186
248
310
372
434
496
Chamber(pcs)
3
4
5
6
4
5
6
7
8
Quantity of filter bag(pcs)
32
64
Total quantity of filter bag(pcs)
96
128
160
192
256
320
384
448
512
Pulse valve
Quantity
3
4
5
6
4
5
6
7
8
Specification
1
2
Specification of filter bag
130(D.)*2450
Filter material
Based on flue gas properties
Filtration speed
0.8~2.0(Adjustable)
Negative pressure
less than 6000
Resistance
1470~1770
Inlet dust concentration
less than 200
less than 1000
Blowing pressure
0.5~0.7
Compressed air consumption
0.27
0.37
0.46
0.55
1.2
1.5
1.8
2.1
2.4
Air-locking unit
Adjustable
Screw conveyor
No
Adjustable
Area of heat preservation
26.5
34
41
48.5
70
94
118
142
176
GRACE FILTER can provide a new, turnkey installation of a new dust collector, or can convert an existing dust collector to function in a new or updated environment. One of our experienced engineers stands ready to assist you when you mail us by See below for more information on any of our most commonly ordered dust collector projects.
Pulse Jet Bag house Dust Collectors are also commonly spelled Pulse-Jet Dust Collector or Pulsejet Dust collector
