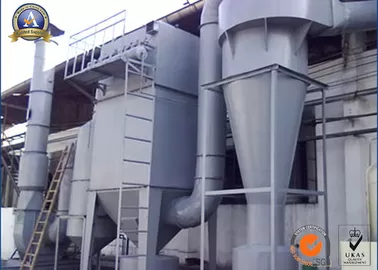

Pulse Jet Bag Filter Dust Collector For Cement Plant / Thermal Power Plant
ECOGRACE Baghouse Bag Filter ,off line dust releasing dust collector with high
efficiency and energy saving functions , for stone crushing area , Asphalt mixing, Cement plant,steel mill, power station.
1). Grace Envirotech is the is a subsidiary company of Grace Filter Manufacturing (U.K) limited.
2). We have supplied dust collectors for many industry: mining industry ,automobile, foundry, furnace, cement, chemical, welding, thermal power plant, food industry, woodworking, tobacco, grinding, rubber, etc.
3). We have professional engineers works in dust collector field for over 20 years, and engineering team use Auto CADS and 3D software for design to reduce the error.
4). Skilled installation and commissioning technicians, thoughtful aftersales service team to solve all your dust collector requirement and problems.
5). We work with the best, serve the best, and try to be the best manufacturer. Our accessories are from world famous brand, such as ABB, SIEMENS, ASCO, etc.
Features:
1, using the pulse jet cleaning technology, cleaning ability, dust, high efficiency, low emission levels, air leakage rate is small, low energy consumption, steel consumption less, covers an area of low, stable and reliable, good economic returns. Used in metallurgy, building materials, machinery, chemicals, power, light industry, smoke dust.
2, the cabinet adopted the design air tightness, tightness, and check the door seal with excellent material, the production process to kerosene leak, air leakage rate is very low.
3, the inlet and outlet air duct layout compact, air resistance.
4, using the sub-room air pulse jet cleaning stopped, cleaning cycle is long, low consumption, can be doubled to improve the life of the filter bag and valve.
5, can be achieved without stopping the machine for bags, repair does not affect normal operation.
6, by way of the upper pumping filter bags, filter bags for improved operation and running.
Applications:
1 Iron, steel mill, ferroalloy plant, refractory plant, foundry, power plant of flue gas filtration system.
2 Wastes incinerator,coal fired boilers, fluid fluidized bed boiler flue gas filter etc.
3 Asphalt mixing, cement ceramic, lime and gypsum and other production sites.
4 Aluminum electrolysis, lead and tin, zinc, copper and other rare metal smelting gas filtering,superfine material recovery, liquid and solid separation.
5.Thermal power plant ,cement plant , metallurgy industry, chemical industry, the characteristics of smoke, or the successful development of power plant boiler, cement rotary kiln, steel mills, coke oven blast furnace
Specifications:
Model
CGQM
32-3
CGQM
32-4
CGQM
32-5
CGQM
32-6
CGQM
64-4
CGQM
64-5
CGQM
64-6
CGQM
64-7
CGQM
64-8
Air volume (m3 /h)
6900
8930
11160
13390
17800
22300
26700
31200
35700
Total filter area (m2)
93
124
155
186
248
310
372
434
496
Chamber(pcs)
3
4
5
6
4
5
6
7
8
Quantity of filter bag(pcs)
32
64
Total quantity of filter bag(pcs)
96
128
160
192
256
320
384
448
512
Pulse valve
Quantity(pcs)
3
4
5
6
4
5
6
7
8
Specification(inch)
2
2 1/2
Specification of filter bag(Dmm*Lmm)
130*2450
Filter material
Based on flue gas properties
Filtration speed(m/min)
0.8~2.0(Adjustable)
Negative pressure(Pa)
less than 6000
Resistance(Pa)
1470~1770
Inlet dust concentration
less than 200
less than 1000
Blowing pressure(Mpa)
0.5~0.7
Compressed air consumption(Nm3/min)
0.27
0.37
0.46
0.55
1.2
1.5
1.8
2.1
2.4
Air-locking unit
Adjustable
Screw conveyor
No
Adjustable
Area of heat preservation(m2)
28.3
35.8
45.1
56.8
71
96.2
120.2
142.6
176
Features:
1, using the pulse jet cleaning technology, cleaning ability, dust, high efficiency, low emission levels, air leakage rate is small, low energy consumption, steel consumption less, covers an area of low, stable and reliable, good economic returns. Used in metallurgy, building materials, machinery, chemicals, power, light industry, smoke dust.
2, the cabinet adopted the design air tightness, tightness, and check the door seal with excellent material, the production process to kerosene leak, air leakage rate is very low.
3, the inlet and outlet air duct layout compact, air resistance.
4, using the sub-room air pulse jet cleaning stopped, cleaning cycle is long, low consumption, can be doubled to improve the life of the filter bag and valve.
5, can be achieved without stopping the machine for bags, repair does not affect normal operation.
6, by way of the upper pumping bags, bags for improved operation and running.
