Asphalt mixing Bag Filter Industrial dust collector 20000-100000M3/H
ECOGRACE DUST COLLECTION SYSTEM :
Detailed Product Description
Type Of Dust Collector:
Baghouse Filter
Cleaning Type:
Pulse Jet Cleaning
Gas Temperature:
Rom Temperature Ambient Temperature
Material:
5mm Steel Plate
Air Flow:
6000-60000M3/H
Filter Speed:
1.0-1.5 M/min
Filter Bags:
Polyester Filter Bag / Nomex Filter Bag
Shape:
Pulse Jet Dust Collector
Energy Saving Industrial Dust Collector System Dust Collection Units 50000-100000M3/H
Asphalt mixing Bag Filter Industrial dust collector 20000-100000M3/H
Industrial dust collector for cement production / power processing / steel melting.

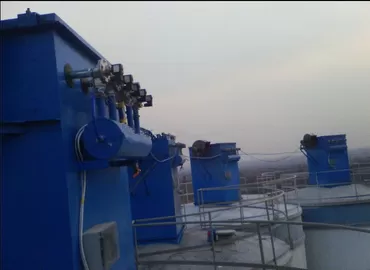

The cement production process dust source including stone crushing dust collection , cement mill dust collection , cement silo dust filter , cement transfer conveyor dust collection , etc.
Powder processing , material handling process including milling , mixing / blending / batching process. We customize desgin and produce for material handling process , mixing , feeding , blending , batching process . The dust collected will be recycled .Here , introduce our pulse jet baghouse dust collector for general dust source in process of material handling , feeding , mixing , blending , batching . The air flow is usually from 6000 M3/ h to 60000 M3/h.
The steel melting include the primary steel / iron melting , aluminum melting , copper , leads melting furnace dust filtration . The air flow are from 10000-200000 M3/H or more .
Brief Introduction :
ECOGRACE design , manufacture and installing the dust filtration system of above industry and dust source .Our special and expertise design on the ducting and suction hoods will be different and excellent in filtration and cleaning for production shop .
Dust Collector technical specification :
Model No.
EDMC 120
Air Flow
50000-100000M3/H
Filter speed
1.2 M/min
Temperature of the gas
Room ambient
Filtration area
2000 M2
Filter media
Polyester filter bag / Nomex filter bag
Filter bag size
D160X60 00
Compressed air consumption
0.5-0.7 M3/min
Pulse valve size
2.5 inch
Resistance
<1000 pa
Working Principle of dust collection systems :
1. The compostion of small dust collector unit :
Bag Filter dust collector , Fan with frequency convertor control , PLC , air compressor station. Rotary dust discharging, discharged dust conveyor system .
2. The filter cleaned by solenoid valve pulse. We always take ASCO and GOYEN brand as our first choice for our system.
3. Filter cage and filter bag will be fit in the assembled baghouse .
4. Good and reasonable design for the hoods and capacity of dust collector will reach a very different working result for the steel plant induction furnace .
Advantage of ECOGRACE dust collector Filter Unit :
1. Easy operation maintenance.

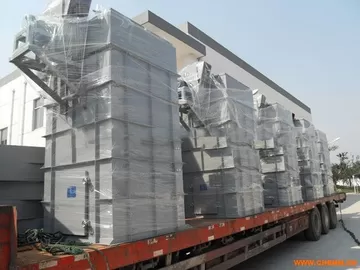

2. Assembled when EX work from our factory and no more intallation work needed.
3. High filtration efficiency up to 99.99% , low emission < 30 mg/ M3.
4. Energy saving
5. Lower system resistance up to < 1000 pa.
6. ECOGRACE self made fabric filter bags will be with free replacement in 3 years.
