For Sanding Process , Feeding Process Dust Suction, Etc
Air Flow:
5000M3/H
Filter Speed:
1.2m/min
Filtration Efficiency:
Up To 99.99%
System Resistance:
< 1000 Pa
Filtration Area:
86 M2
High Light:
industrial dust collector systems, dust collection systems
Custom Industrial Dust Collector Filter Unit 3000 CFM , Dust Collecting System
Detailed Product Description
Type Of Dust Collector:
Dust Extractor
Cleaning Type:
On Line Filter Cleaning
Gas Temperature:
Ambient Room Temperature
Material:
Steel / Stainless Steel
Air Flow:
3000CFM
Filter Speed:
1.20-1.50 M/min
Filter Bags:
Polyester Filter Bag
Shape:
Small Type Single House Filter Unit
Custom Dust Collecting System Industrial Dust Collector Filter Unit 3000 CFM
Dust extraction equipment Industrial Dust collector Filter Unit 3000 CFM , it is equal to air flow 5100 M3/H , which is mostly applied for the small dust source , for cement transfer conveyor dusty point , mining area , polishing process, sanding process , feeding process dust suction, etc.
Brief Introduction :
ECOGRACE smaller type dust collector Filter Unit is generally with smaller air flow from 2000 M3/H to 30000 M3/H , which is small in outside dimention , and we will design the most reasonable dimention for easy container loading and shipping , no need more installatino work at production site . It will be assembled in whole and put into the container , you can directly start when take out from container .
Dust Collector technical specification :
Model No.
EDMC 80
Air Flow
5000M3/H
Filter speed
1.2 M/min
Temperature of the gas
Room ambient
Filtration area
86 M2
Filter media
Polyester filter bag
Filter bag size
D130X2450
Compressed air consumption
0.5-0.7 M3/min
Pulse valve size
1 inch
Resistance
<1000 pa
Working Principle of small Dust collector Filter Unit :
1. The compostion of small dust collector unit :
Single Baghouse and assembled in whole before shipping and only one step before starting .
Assmebled Filter Unit , Fan , PLC , air compressor .
2. The filter cleaned by solenoid valve pulse. ASCO and GOYEN is the regular band we take .

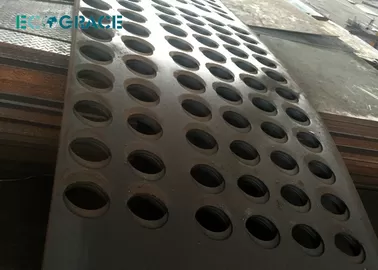

3. Filter cage and filter bag will be fit in the assembled baghouse .
4. Good and reasonable design for the hoods and capacity of dust collector will reach a very different working result for the steel plant induction furnace .
Advantage of ECOGRACE smaller dust collector Filter Unit :
1. Easy operation maintenance.Single baghouse .
2. Assembled when EX work from our factory and no more intallation work needed.
3. High filtration efficiency up to 99.99% , low emission < 30 mg/ M3.
4. Energy saving
5. Lower system resistance up to < 1000 pa.
6. ECOGRACE self made fabric filter bags will be with free replacement in 3 years.
