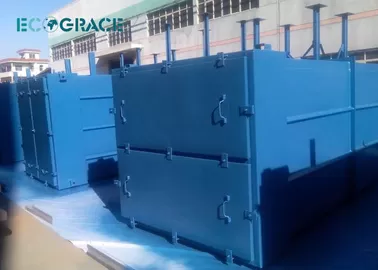

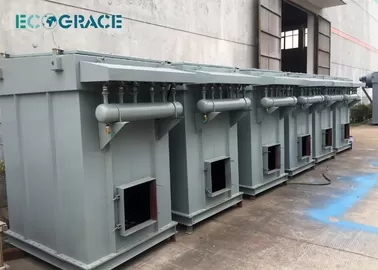

Bag house industrial dust collector for foundary / metallurgy / metal scap melting .Steel plant electronic furnace Industrial dust collection equipment . For different working condition in steel plant , we will provide special and expert filtration solutions for the dust collection / dust extration systems for the fumes generated from the melting furnace , sintering furnace , blast furnace / shaft furnace ,induction furnace .
Metallurgy industry , beside steel melting electronic furnace , we will provide the filtration solutions dust collection system for melting furnace for aluminum , copper , leads , iron crap , zinc , etc. Our design ,manufacture , service scope including the suction hoods , baghouse dust collector ,ducting work , PLC control ,etc.
Brief Introduction :
ECOGRACE steel plant electronic furnace dust collector systems always with air flow from 30000M3/H to 400000 M3/H , We provide the key solution for both ambient temperature and high temperature . We will design the high efficiency hoods for good suction , and also the ducting works .
Dust Collector technical specification :
Model No.
EDMC 120
Air Flow
30000 M3/H
Filter speed
1.0M/min
Temperature of the gas
Ambient
Filtration area
500 M2
Filter media
Polyester filter bag
Filter bag size
D160 x L 6000
Compressed air consumption
0.5-0.7 M3/min
Pulse valve size
2.5 inch
Resistance
<1000 pa
Working Principle of steel plant Dust collector Filter Unit :
1. The compostion of small dust collector unit :
Fumes suction hoods , Baghouse dust collection system ,
Fan suction system , ducting workds ,
Dust discharging and dust conveyor systems
2. The filter cleaned by solenoid valve pulse imported from US or Europe.
3. Filter cage and filter bag will be fit in the assembled baghouse .
4. Good and reasonable design for the hoods and capacity of dust collector will reach a very different working result for the steel plant induction furnace .
Advantage of ECOGRACE dust collector Filter Unit :
1. Easy operation maintenance.
2. Lower resistance , energy saving .
3. High filtration efficiency up to 99.99% , low emission < 30 mg/ M3.
5. Lower system resistance up to < 1000 pa.
6. ECOGRACE self made fabric filter bags will be with free replacement in 3 years.
